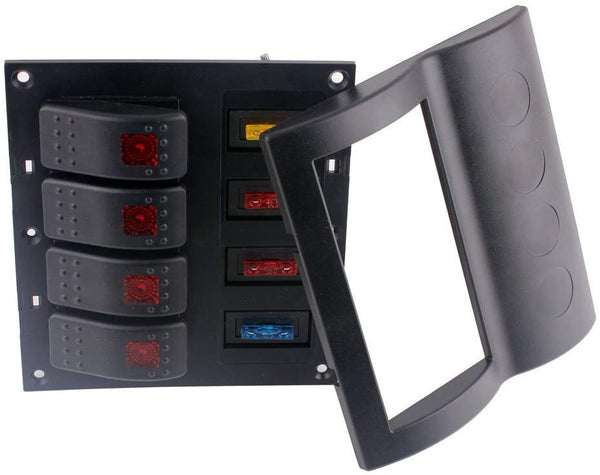

Generic Black 4 Gang Boat Switch Panel LED Indicators Rocker With Auto Fuses For Boat

Features:
Voltage: 12VDC;
Anti-UV ABS plastic face pannel;
4 Waterproof rocker switches(IP68);
Circuit breaker, With LED Indicator Rocker Auto Fuses;

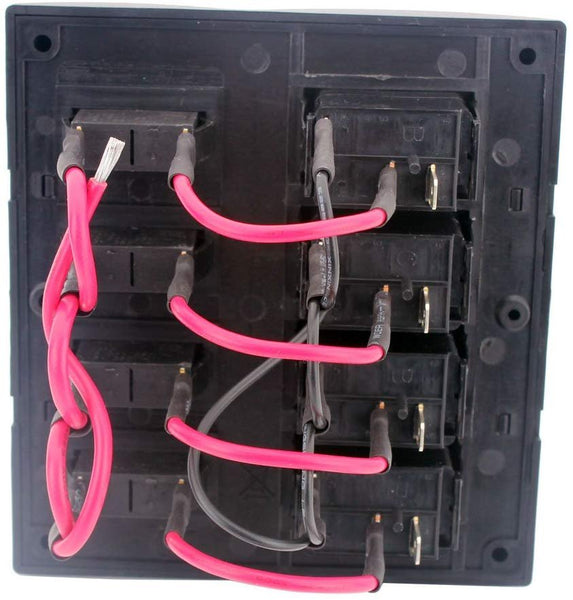

Pre-wired, 24 label stickers, original blister packing;
Can be vertical or horizontal mounted;
CE approved.
Waterproof:IP68
Max. Voltage: 30VDC;
Peak Load: DC 12V / 23A ;24V/11.5A;
Max. Continuous Load: AC:125V/16A 250V/10A; DC:12V/20A 24V/10A.
Housing color:Black
Size:120(Width)*131(Height)*86(Depth)(mm)
Panel size: 131*120(mm)
Drill size: 105*93(mm)
Configuration
1、Rocker Switch×4
2、Breaker×4(5A×1/10A×2/15A×1)
3、Stainless Steel Screw×6
4、Silicone Gaskets×1
5、Wire Resistanc×6
6、Labels Sticker×24
What is in box ?
1 x 4 Gang Boat Switch Panel

• 1. Voltage: 12VDC--This panel switch are UL&CE approved,widely used in automotive (MOTORHOME/SUV) ,boat (marine& yacht),helicopter,teaching equipment,textile machinery and other field.We can help you design different Switch.
• 2.Max. Voltage: 30VDC;---High quality 4 Gang Switch Panel with inbuilt auto fuse.Red LED Backlight illumination indicating on and off.Stick on the label required for each switch,it is easy and efficient to use.
• 3. Peak Load: DC 12V / 23A ;24V/11.5A;---This is a 4 Gang Splashproof Switch Panel made of UV Stabilized Plastic. Each switch comes with LED indicator and they are UL approved.
• 4.Size:120(Width)*131(Height)*86(Depth)(mm)
• 5.4 Waterproof rocker switches(IP68);---23 Preprinted labels will be provided. This panel can be mounted vertically or horizontally. Switch is waterproof to a rating of IP68.
